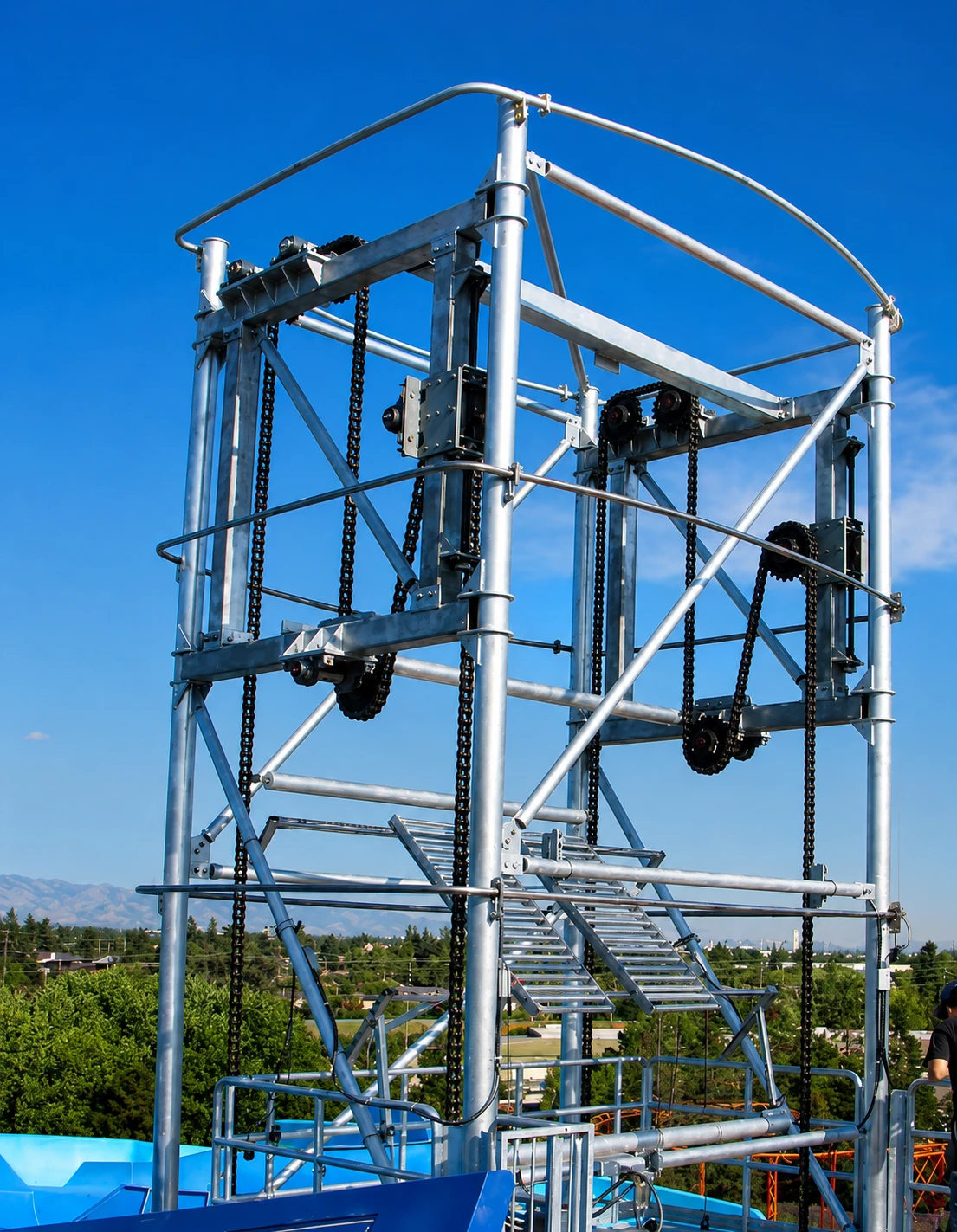

Vertical Chain Lift
The Vertical Chain Lift is designed to transport round rafts straight up when space is limited and vertical elevation is the only option. Its compact, self-supporting design minimizes footprint while providing reliable, efficient raft transportation for waterpark attractions.
Compact Vertical Transport for Space-Constrained Designs
Engineered for installations where space is at a premium, the Vertical Chain Lift moves round rafts vertically with ease. Rafts can enter from one direction and exit from either the same or opposite direction at the top, offering greater layout flexibility. Its fully self-supporting frame eliminates the need for additional steel supports and concrete footings, making it the most space-efficient conveyor system in the Van Stone lineup.
True Vertical Conveyance
Efficiently transports rafts straight upward in compact spaces.
Flexible Top Discharge Options
Allow rafts to exit in the same or opposite direction.
Self-Supporting Structure
Reduces the need for additional steel supports and foundations
Compact & Reliable Design
Minimizes footprint while delivering smooth daily operation.
Vertical Transport for Space-Constrained Waterparks
When a straight vertical lift is the only solution, the Vertical Chain Lift delivers reliable and efficient raft transportation with the smallest footprint of any Van Stone system. Its fully self-supporting frame eliminates the need for additional structural steel and concrete footings, while offering flexible loading and unloading configurations. Designed specifically for round rafts, it helps maximize valuable space without compromising performance.
Vertical Chain Lift
Frequently Asked Questions
What is the Vertical Chain Lift designed for?
It is engineered to provide efficient vertical transportation for round rafts and tubes in attractions with limited available space.
Does the system require extra structural support?
No, the fully self-supporting frame minimizes the need for supplemental steel structures and extensive concrete footings.
Can rafts discharge in different directions?
Yes, rafts can exit in either the same or opposite direction at the top to support flexible ride layouts.
Is it suitable for limited-space attractions?
Yes, the compact vertical design makes it ideal for retrofit projects and space-constrained waterpark installations.
Expert guidance from installation to operation.
Design lends itself perfectly to custom theming elements.
Handles all standard raft and tube varieties with ease.
Your attraction's next upgrade awaits? Request a Custom Quote!
Every park layout is unique. Share your site dimensions and throughput requirements with us, and our engineering team will provide a custom configuration that maximizes your space and budget.
